THE ARCHITECTURE

My selected Hero Shot:

My selected Detailed Shot:

The model design presents as an elaborate combination of curved parts that interact to create a large, functional spaces. The detailed shot presents half of the building as sectioned, revealing the underground area for Auto-Fabrica. The detailed shot on the other hand depicts entrance foyer of the building, which is situated below the two top levels. This shot depicts a display for the Auto=Fabrica motorbikes and introduces an industrial style that mixes hard materials with soft shapes.

Other images:

ABOVE: View from the entrance

ABOVE: View down towards the entrance.

ABOVE: Staircase from showcase level to top level (Barnabi Freeman).

ABOVE: Side View

ABOVE: Section of the 3D Model.

Note: Lumion was not used because I found it difficult to alter the flooring to carve in some of the underground spaces. This was just one of the attempts.

36 Custom Textures



3 CUSTOM TEXTURES INCLUDED INTO SKETCH-UP MODEL

• Texture 1: LIGHT

ABOVE: Light texture used in both light and dark colours on the roof

• Texture 2: PATINA

ABOVE: Patina texture is used as a material for outer walls.

• Texture 3: STONY

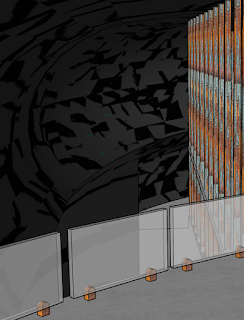

ABOVE: Stony texture used prominently in the Auto-Fabrica section (Underground section)

The Stair: Submission

THE STAIR: SKETCHES/ SECTIONS

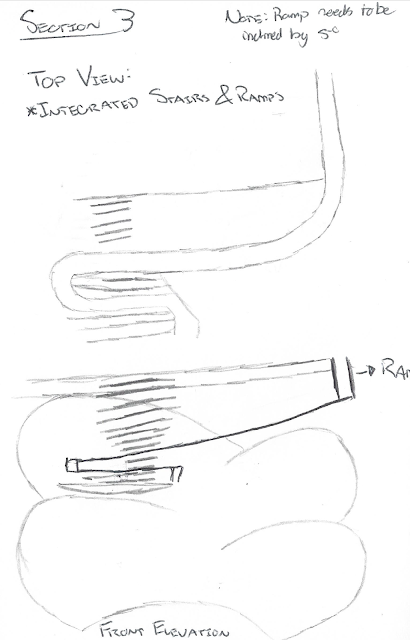

Above: Depicts a potential path to the 1st story from the ground floor.

Above: Depicts a potential path to the 1st story from the ground floor.

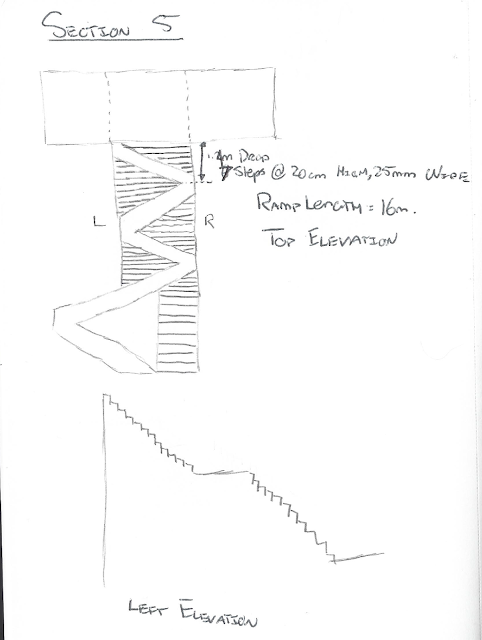

Above: Depicts a potential path to the basement level from the ground floor through the use of a intertwined ramp and staircase.

Above: Depicts a potential path to the 1st story from the ground floor, through the use of circular stairs

Above: Depicts a potential path to the basement level from the ground floor through the use of a intertwined ramp and staircase.

SKETCH-UP MODEL

The sketch up model implements a combination of Section 1 and 4, as well as Section 5. The use of a circular set of stairs in a large open space, represents a spacial artwork that provides an opportunity for individuals to be transferred on a metaphorical journey. This idea of a journey is even more prevalent in the second representation of the stair, where an individual is given an opportunity to choose their own path and thus experience their own unique journey.

STAIR 1

STAIR 2

STAIR 1 & 2

Client Sections

CLIENT SECTIONS: SKETCHES

My two clients are Bernabei Freedom and Auto-Fabrica. Each design was influenced from the design and styles of their corresponding clients.

SKETCHUP-MAKE MODEL

Front Elevation (Above)

Top: Motif (Bernabei Freeman)

Bottom: Perpetual (Auto Fabrica)

Isometric View (Below)

The sketchup model is a combination of two sections. I used the top of Section 6 and the bottom of Section 2 as I believed that these two concepts were a more appropriate match. I have also changes the bottom of Section 2, so that the floor is suspended, adding a perpetual(timeless) aurora around the design.
